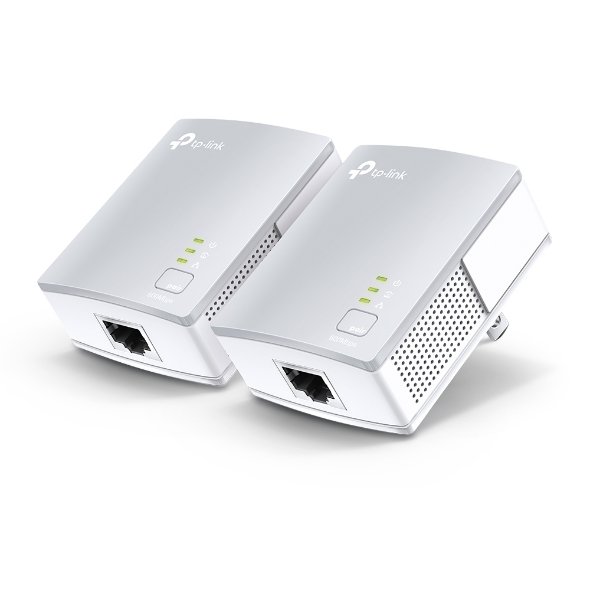

TL-PA4010 KIT
AV600 Powerline Starter Kit
- HomePlug AV2 standard compliant

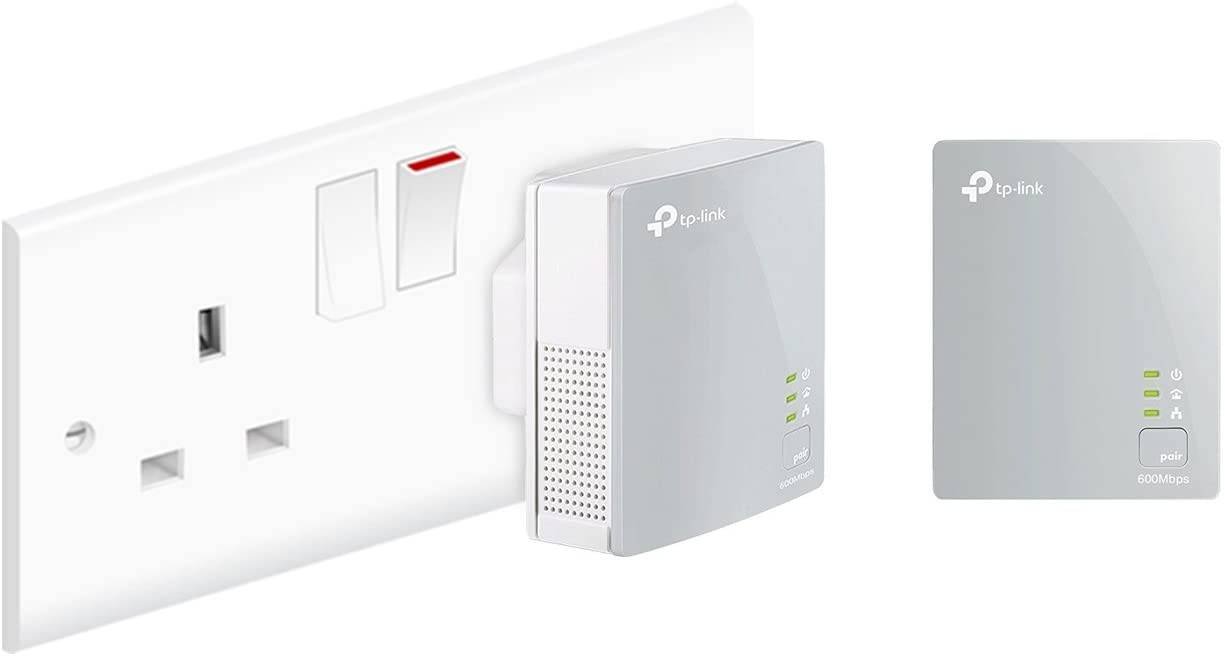

- Miniature design, smaller than most powerline adapters in?the market, blends discreetly in front of any power outlet
- No new wires, Easy Plug and Play operation, No configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%**
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | HomePlug AV2, IEEE802.3, IEEE802.3u |
| Plug Type | US |
| Interface | 1*10/100Mbps Ethernet Port |
| Button | Pair Button |
| Power Consumption | Maximum: 2.5W Typical: 2.3W Standby: 0.36W |
| LED Indicator | Power, Powerline, Ethernet |

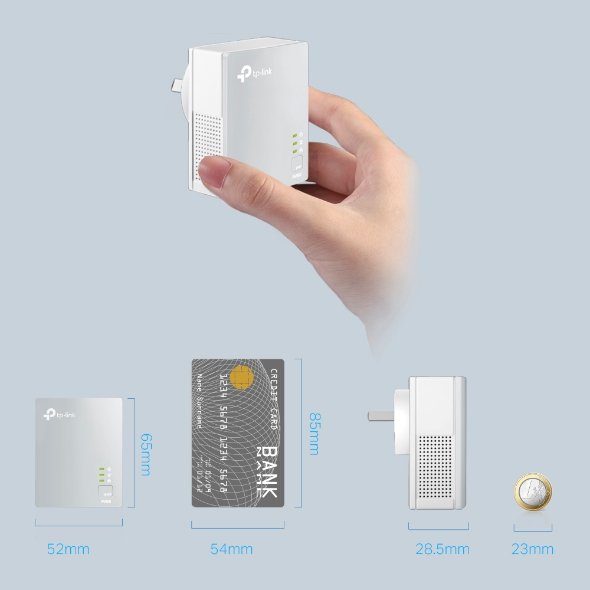

| Dimensions ( W x D x H ) | 2.0 x 1.1 x 2.6 in.(52 ? 28.5 ? 65mm) |

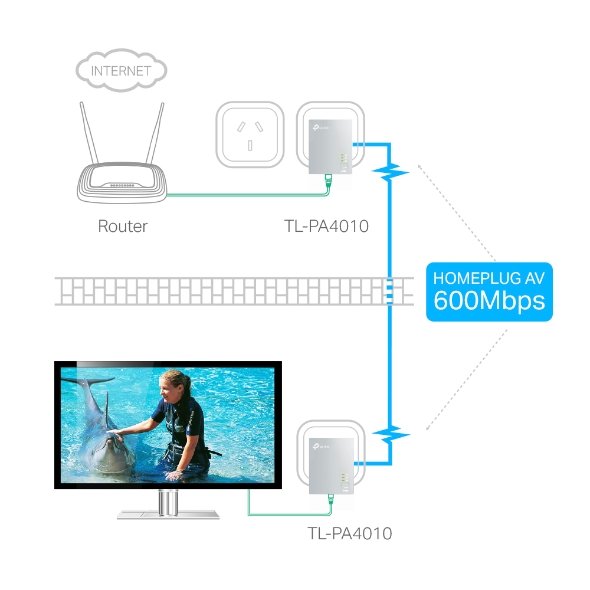

| Range | Up to 300 meters/1000 feet over existing electrical wiring |
| SOFTWARE FEATURES | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | 128-bit AES Encryption |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | AV600 Powerline Adapter: 2 ? TL-PA4010 2 ? Ethernet Cables Quick Installation Guide |
| System Requirements | System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux System Requirements for tpPLC Utility: Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later) |
| Environment | Operating Temperature: 0?C~40?C (32?F ~104?F) Operating Humidity: 10%~90% non-condensing |
