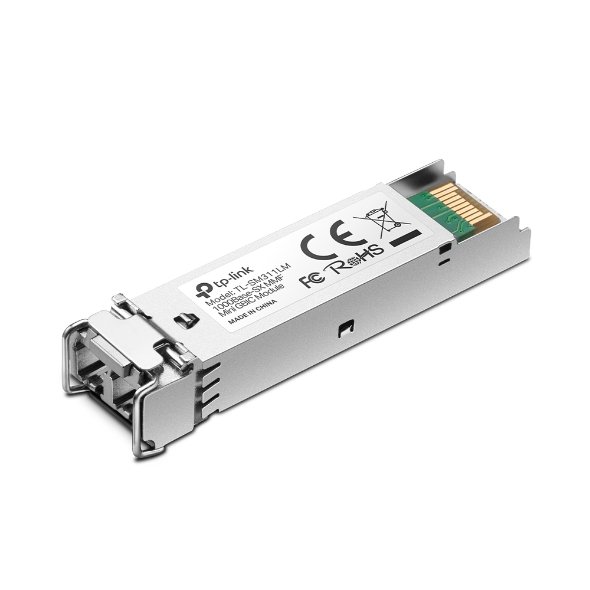

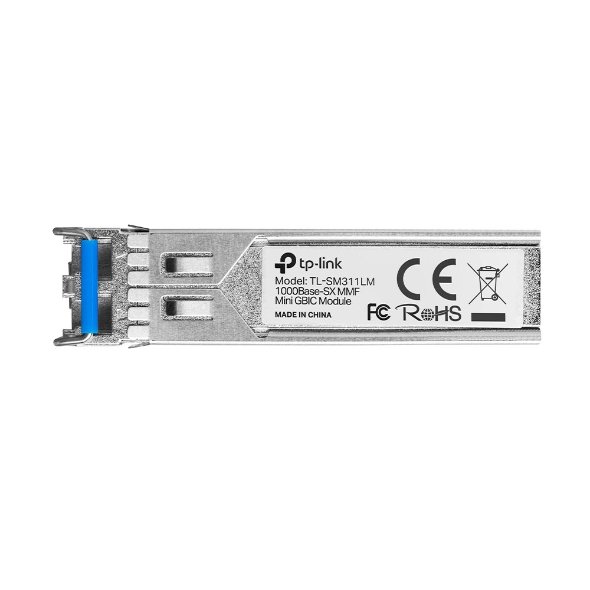

TL-SM311LM
MiniGBIC Module
- Multi-mode MiniGBIC module
- Compatible with?all SFP ports on TP-Link product?including JetStream switches, and media converter MC220L.
- Work with MC200CM?with a multi-mode fiber connection
- Up to 550m?range with 50/125 ?m?multi-mode fiber
- Up to 275m range with 62.5/125 ?m multi-mode fiber.
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | ? SFP Module TL-SM311LM ? Installation Guide |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Dimensions (W*D*H) | 2.2*0.5*0.5 in (55.4*13.7*12.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125?m or 62.5/125?m Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0?~70? (32?~158?) Storage Temperature: -40?~80? (-40?~176?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
